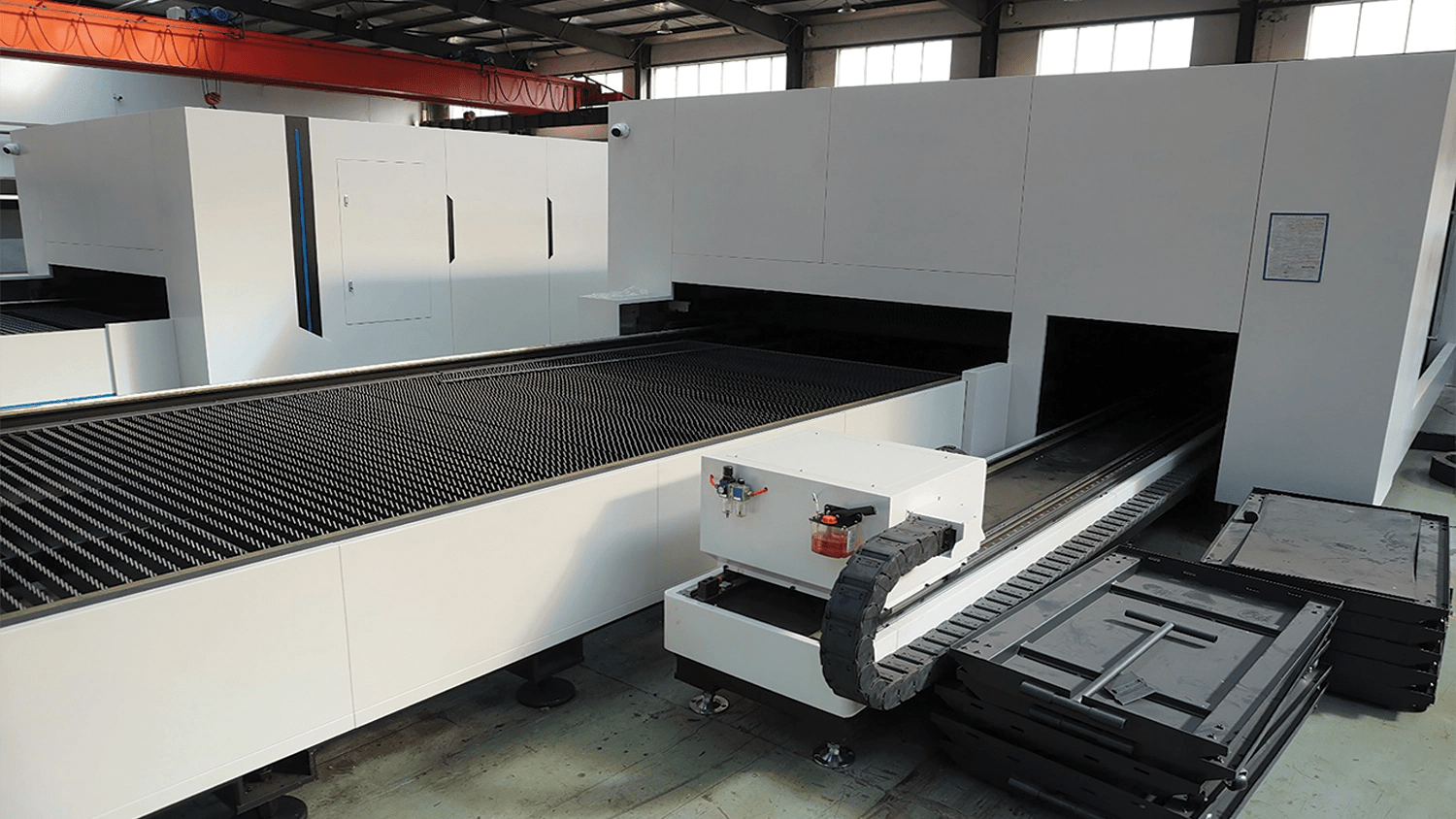

LFB-510-DT Fiber Laser Cutting Machine
The LFB-510-DT is a high-performance, fully enclosed fiber laser cutting machine, designed for precision metal cutting. Featuring a double sliding table, this innovative machine allows operators to load new materials while cutting continues on the previous batch, enabling seamless, continuous operation. This feature significantly enhances productivity and reduces downtime, making it perfect for high-demand, high-volume applications.
Key Options:
- Customizable working area sizes up to 7×20′
- Laser power options: 3KW, 4KW, 6KW, 12KW
- Optional tube-cutting unit for added versatility
- 3-phase voltage stabilizer for consistent power supply
- Smart Control Unit for O2, N2, and Air for optimized gas use
Specifications:
- Heavy-duty, well-engineered frame for durability
- Double-tray guided system for efficient material handling
- Fully enclosed frame for operator safety and protection
- Laser power source options: 1.5KW, 2KW, 3KW, 6KW
- Working area: 5’x10′
- Yaskawa Servo system for high precision and smooth motion control
- Raytools Laser head for clean and accurate cuts
- PLC24 Totaly Customized Control System
- Double-stage homing for improved accuracy and reduced downtime
- Industrial i7 touch panel PC for an intuitive user interface
- Industrial chiller for stable cooling during extended operations
- Industrial screw air compressor with dryer for consistent air supply
- High-grade EMI protection for stable performance
- Power monitoring and data collection system for real-time insights
- Voltage: 220V/3Phase (6KW-20KW)
- Voltage stabilizer and protection for smooth operation
- 1-year warranty for peace of mind
- Free setup and onsite training for quick, efficient use
