LGC-0408

4’x8′ CNC Laser Cutting & Engraving Machine

Overview

The 4’x8′ CNC Laser LGC-0408 is a high-performance, full-size CO2 laser cutting and engraving machine designed for handling full 4’x8′ sheets. Ideal for businesses that require precision and versatility, this machine features an innovative optical design, making laser tuning and alignment easy. Despite its large size, the LGC-0408 ensures straightforward setup and maintenance, allowing for seamless operation.

Versatility in Materials

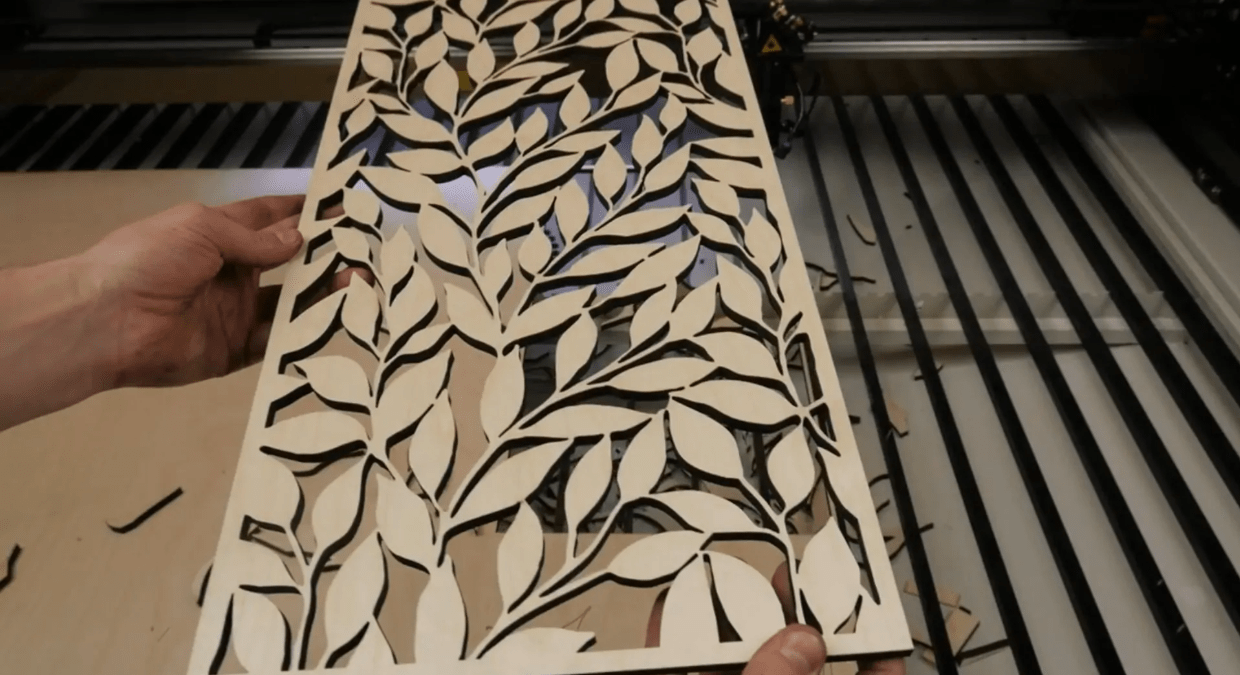

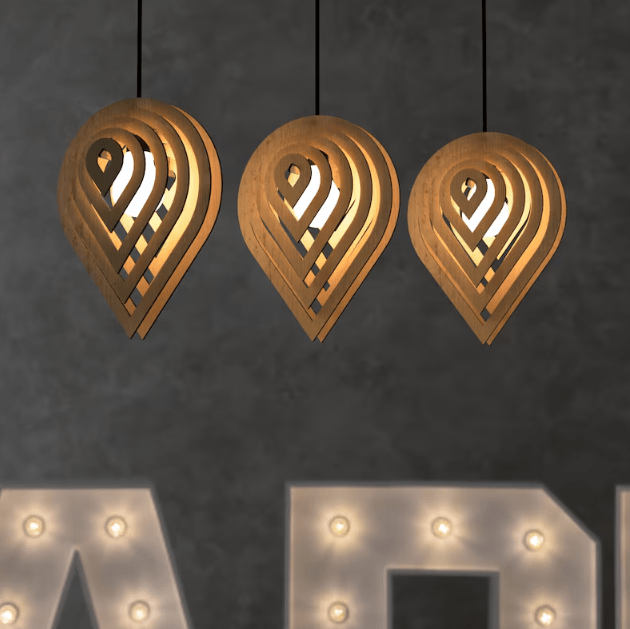

Primarily used for non-metal materials such as wood, acrylic, leather, and plastics, the LGC-0408 delivers outstanding cutting and engraving results. Its powerful CO2 laser offers the flexibility to process a variety of materials, making it ideal for custom sign making, prototyping, and intricate engraving.

Metal Cutting Capabilities

When equipped with a 300W laser tube and optional N2 or O2 gas, the LGC-0408 expands its capabilities to cut and engrave thin metals. This feature makes it a versatile solution for industrial applications, including metal signage, parts production, and more.

Durable & Precision Engineering

Sturdy Build for Consistent Performance

Built with a durable welded steel frame and precision linear guide rails, the LGC-0408 guarantees a stable structure for smooth, accurate operation. The well-engineered design ensures that vibrations are minimized, allowing for high-quality, consistent results over time.

Advanced Control & Software

The machine is powered by a reliable Ruida control system and is compatible with LightBurn Cutting Software. The user-friendly interface allows for easy operation, making it simple to handle complex designs and various file formats. An optional up/down movable table ensures flexibility, allowing businesses to process materials of different thicknesses.

Cooling & Ventilation System

To maintain peak performance, the LGC-0408 comes with a 2-stage water chiller, which helps to prevent overheating and extends the life of the laser tube. The built-in exhaust fan and ventilation system work to remove smoke and fumes, ensuring a clean and safe work environment.

Technical Specifications

  • Working Area: 4’x8’
  • Frame Material: Well-made welded steel frame
  • Guide Rails: Precision linear motion system
  • Control System: Ruida DSP Controller
  • Software Compatibility: LightBurn Cutting Software
  • Optics: High-precision USA Optic System
  • Power Supply: Single-phase 208 VAC / 15A / 60Hz
  • Cooling System: 2-stage water chiller for laser longevity
  • Laser Power Options: 100W, 130W, 150W, 175W, 300W
  • Machine Footprint: ~120” x 72”
  • Weight: ~1200 lbs
  • Optional Add-Ons:
    • Up/Down Movable Table
    • Exhaust Fan and Accessories

Boost Your Business with the LGC-0408

The LGC-0408 is the perfect solution for businesses looking for a high-performance, versatile laser cutting and engraving machine. With its powerful laser, industrial-grade build, and ability to process both non-metal and thin metal materials, it’s an excellent investment for large-scale operations.

Contact us today to learn more or request a quote!
